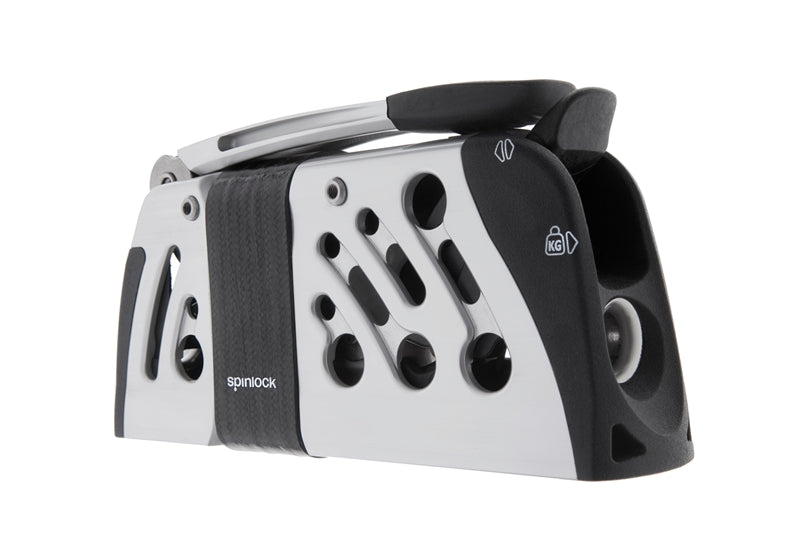

Spinlock XXC Side Mounted Single Power Clutch CTiC 5/16" to 1/2"

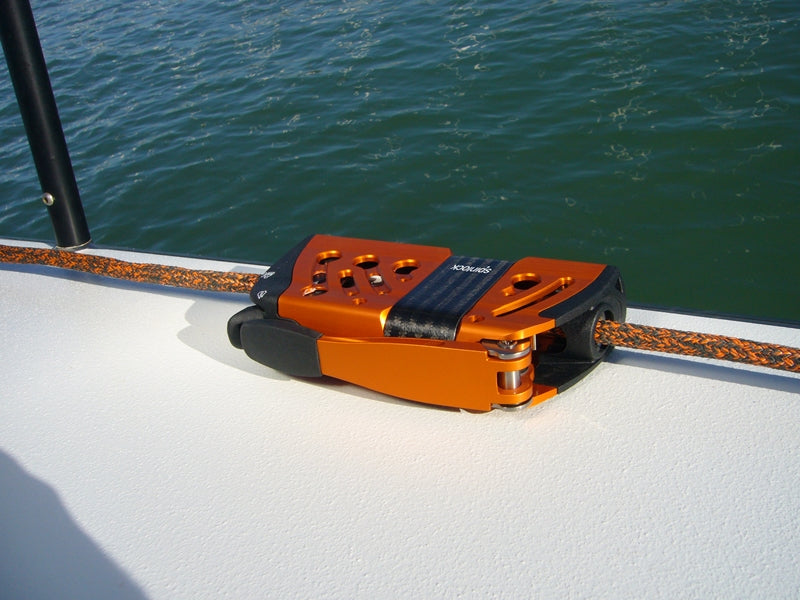

Side mounting is the neatest solution for spars, side decks and coamings. Handed port or starboard; use bolted version for conventional installation, or bonded version for building directly into deck or rig to save installation weight
Meets growing demand for an ultra high performance Clutch
Choose XXC for working loads/diameters that can't be held reliably with conventional clutches but where the winch release of the ZS Jammer is impractical
Choose ZS for bigger diameters/high loads where winched release is positive safety feature and instant release is unnecessary
Specifications:Rope Range - 8mm - 12mm (5/16" - 1/2")
Load - 1200kg - 2350kg (2640lb - 5180lb)
Max SWL - 2350kg (5180lb)
Weight - 0.962kg (2.12lb)
Fasteners - 5 x M6 (1/4") Titanium CSK Head (Supplied)
Features and Benefits:
Holds up to 2350kg working load, 30% higher than the standard XX0812, yet still provides controlled release under load
XXC0812 delivers a 50% increase in power: weight, yet is 15% lighter
Lightened handle and body; locally reinforced with unidirectional carbon fiber and with critical components in Titanium*
Ceramic coated jaws hold hybrid covered lines at loads up to 2350kg and help resist heat generated at higher line speeds for extended jaw life
Optimized for high performance 8-12mm (5/16-1/2") line diameters
Internal Torlon roller bearings ensure lasting performance and durability under high loads
Easy on-deck access for removing complete internal assembly even when banked together
Access ports for fresh water flushing

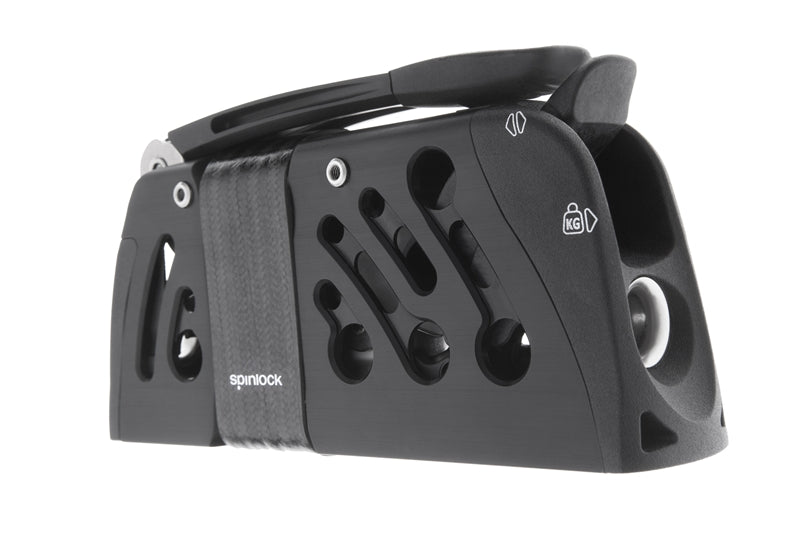

Black, silver and amber versions available
NB: XXC is available with 17-4PH stainless steel parts for teams competing in classes where Titanium is prohibited
