Tylaska 10 3/16" T50 Standard/Clevis Bail Swivel

Item #

TY1250-SC

Usually ships within 1-3 days

Product Description

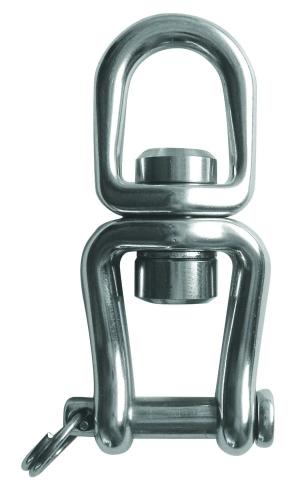

Tylaska 10 3/16" T50 Standard/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T50 Standard/Clevis Bail Swivel

  • Safe Working Load(lb.) - 25,000 (11,340kg)

  • Breaking Strength(lb.) - 50,000 (22,680kg)

  • Weight(oz.) - 120

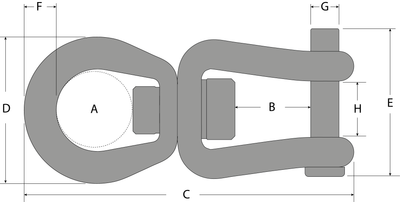

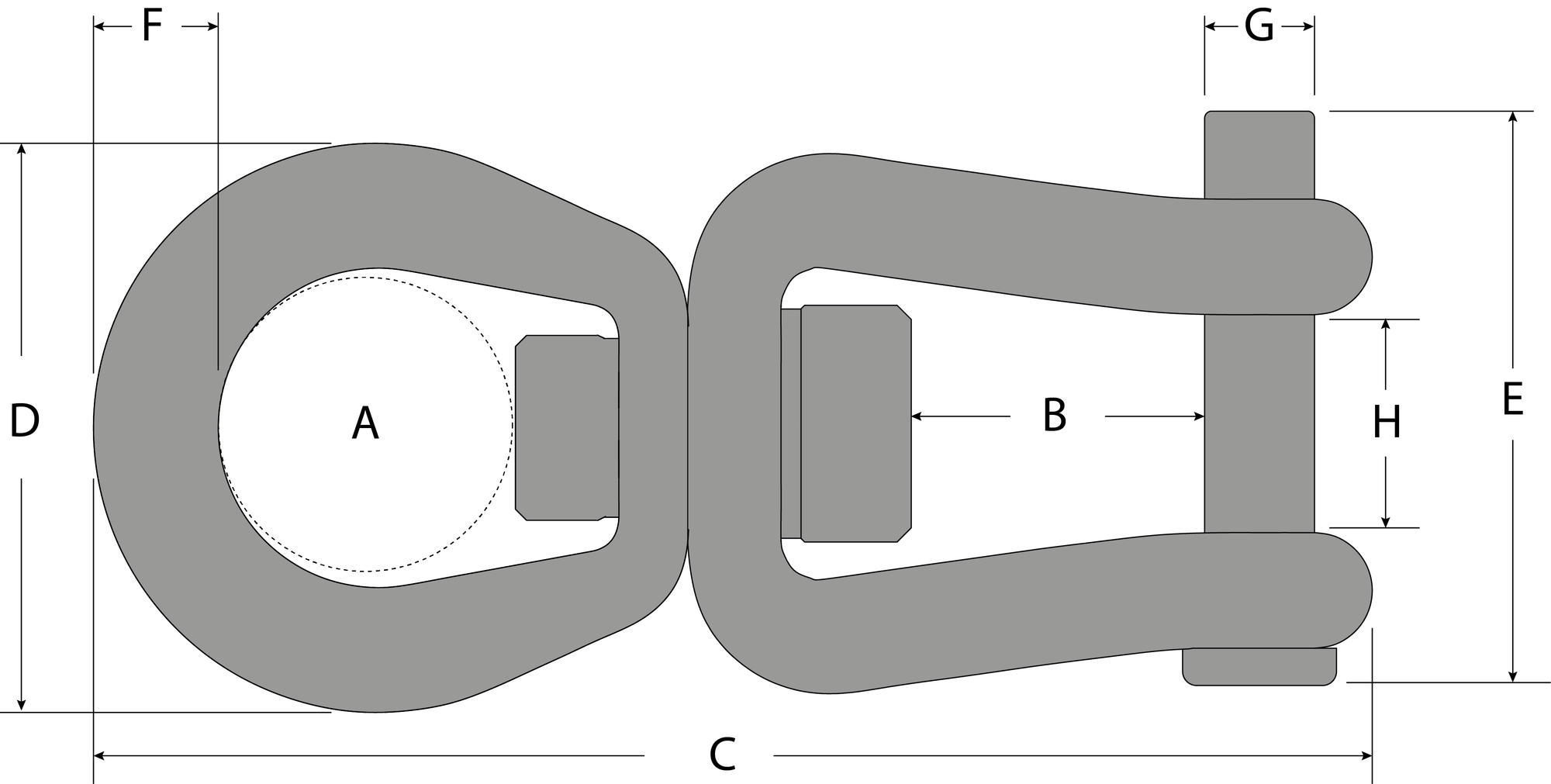

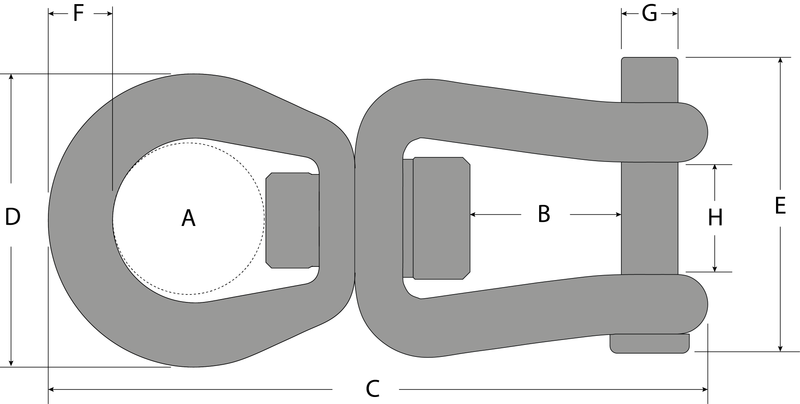

    Dimensions

  • A(in.) - 2.00" (50.8mm)

  • B(in.) - 2.26" (57.4mm)

  • C(in.) - 9.84" (249.9mm)

  • D(in.) - 3.65" (92.7mm)

  • E(in.) - 3.47" (88.1mm)

  • F(in.) - 0.83" (21.1mm)

  • G(in.) - 0.88" (22.2mm)
