Product Description

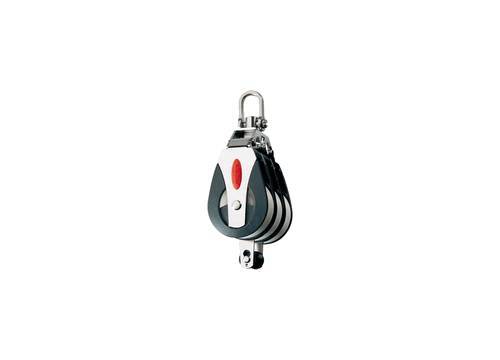

Ronstan Series 40 All Purpose Triple Block w/ Swivel Head & Becket
Features:
Exceptionally high working loads
Low maintenance, long service life
Self-lubricating sheave
Slotted pin shackle eliminates fouled lines
Two way head post
Snap fit removable becket pin
Specifications
Sheave Ø - 1 9/16 in. (40mm)
Max. Rope Ø - in. (mm)
Max. Cable Ø - in (mm)
Pin Ø - 3/16 in. (5mm)
M.W.L. - 1540 lb. (700 kg)
B. L. - 3090 lb. (1400 kg)
Weight - 7.4 oz. (209 g)
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Becket pin is removable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.
Applications:
Mainsheet
Halyard
Vang
Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
Materials:
U.V. stabilized Acetal sheaves
Impact and U.V. resistant, fiber reinforced Nylon cheeks
Grade 316 stainless steel bearing race
Grade 316 stainless steel load strap and head fitting
Sheave: UV stabilized acetal
Cheeks: Impact modified, fiber reinforced and UV stabilized nylon
