Product Description

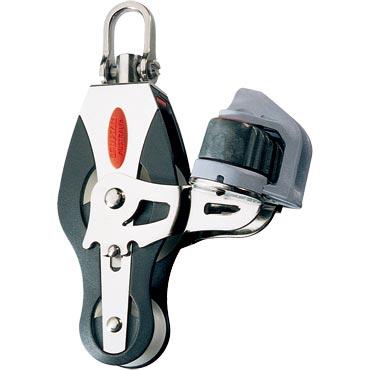

Ronstan Series 40 All Purpose Universal Head Fiddle Block w/ Adjustable Cleat
Features
Exceptionally high working loads
Low maintenance, long service life
Self-lubricating sheave
Captive Lock™ universal head
Slotted pin shackle eliminates fouled lines
Multi-position cleat arm
Sheave Ø - 1 9/16 + 15/16 in.
Max. Rope Ø - 5/16 in.
Max. Cable Ø - in
Pin Ø - 3/16 in.
M.W.L. - 880 lb.
B. L. - 2200 lb.
Weight - 5.5 oz.
Product Information
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Quick adjusting cleat arms require no tools to adjust and fix securely in position.
Applications
Mainsheet
Halyard
Vang
Spinnaker control lines on off-the-beach catamarans, one design classes and sports boats up to 8m (26ft)
Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems.
Materials
U.V. stabilized Acetal sheaves
Impact and U.V. resistant, fiber reinforced Nylon cheeks
Grade 316 stainless steel bearing race
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fiber reinforced Nylon cheeks
