Product Description

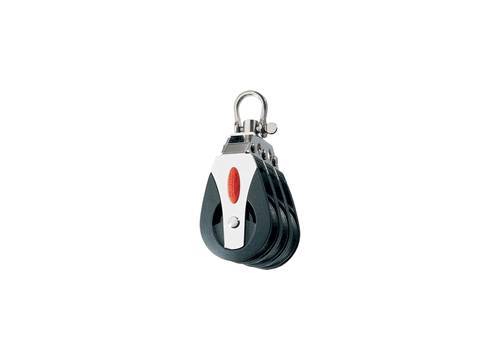

Ronstan Series 40 BB Triple Block w/ Swivel Head
Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
Features:
Low friction Acetal or Torlon® bearing system
Lightweight
Cheek cut-outs for easy bearing maintenance
Features a swivel shackle head for full 360° rotation
Specifications:
Sheave Ø - 1 9/16 in. (40mm)
Max. Rope Ø - 3/8 in. (10mm)
Max. Cable Ø - in (mm)
Pin Ø - 3/16 in. (5 mm)
M.W.L. - 1320 lb. (600 kg)
B. L. - 3090 lb. (1400 kg)
Weight - 6.9 oz. (194 g)
Applications:
Mainsheet
Halyard
Vang
Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
Materials:
Acetal ball bearings
UV stabilised Acetal sheave
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fibre reinforced Nylon cheeks
