Product Description

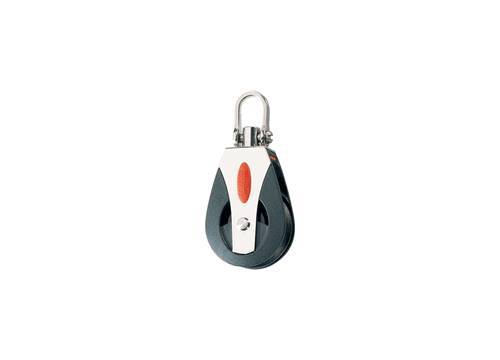

Ronstan Series 40 High Load Single Block, universal head
Features
Exceptionally high working loads
Lightweight
Cheek cut-outs for easy bearing maintenance
Suitable for both rope or wire
Captive Lock universal head
Slotted pin shackle eliminates fouled lines
Sheave 1 9/16 in.
Max. Rope Ø - 3/8 in.
Max. Cable Ø - 5/32 in.
Pin Ø - 3/16 in.
M.W.L. 1100 lb
B.L. 2200 lb
Weight - 2.4 oz.
Product Information
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
Applications
Mainsheet
Halyard
Vang
Spinnaker control lines on off-the-beach catamarans, one design classes and sports boats up to 8m 926 ft)
Materials
Acetal ball bearings
Grade 316 stainless steel load strap and head fitting
Impact and UV resistant, fibre reinforced Nylon cheeks
