Product Description

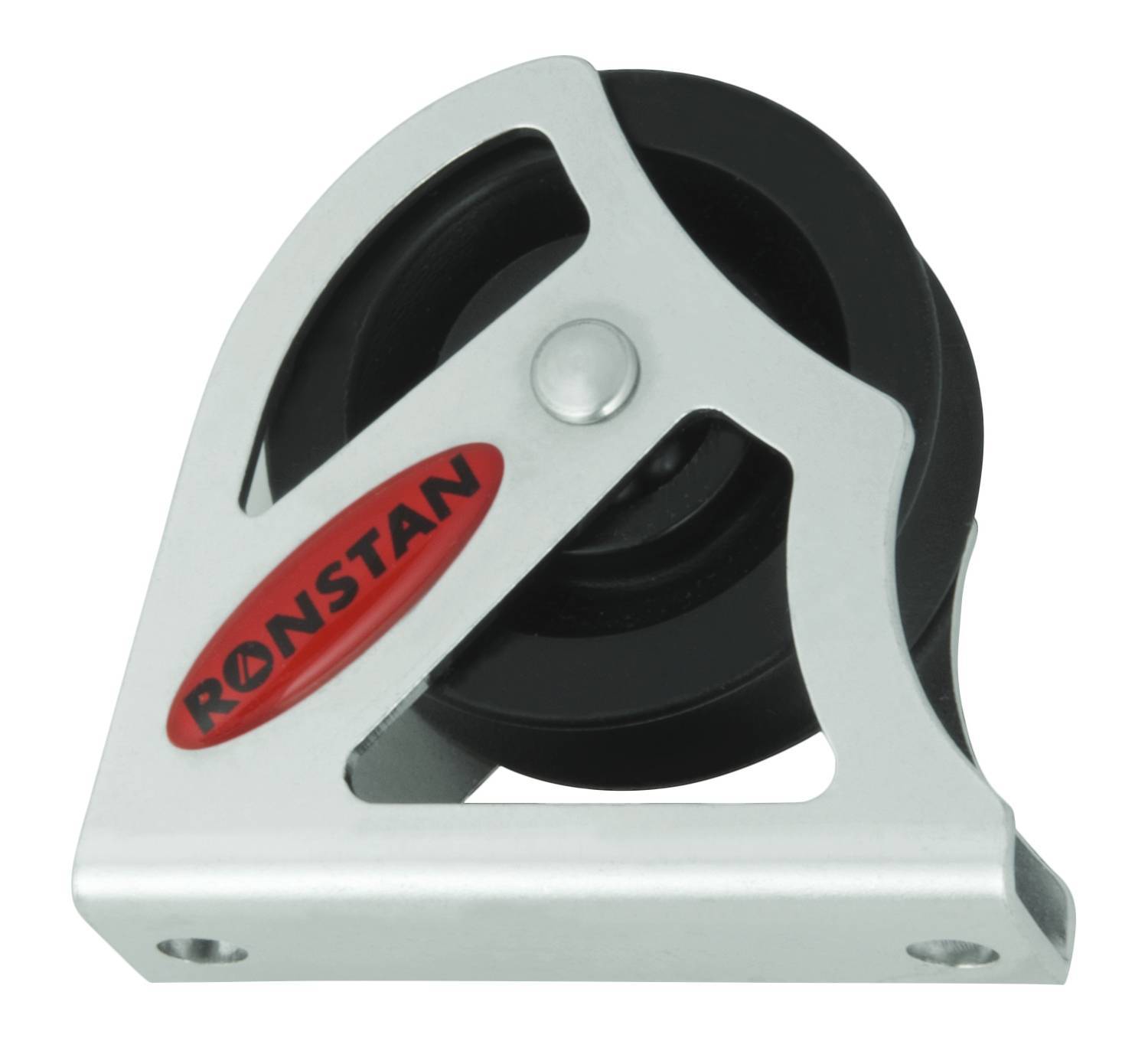

Ronstan Series 40 Single Upright Lead
Features
Exceptionally high working loads
Lightweight
Cheek cut-outs for easy bearing maintenance
Suitable for both wire or rope
Sheave 1 9/16 in.
Max. Rope Ø - 3/8 in.
Max. Cable Ø - -
M.W.L. 770 lb
B.L. 2200 lb
Weight - 2.1 oz.
Product Information
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Precision moulded Acetal sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
Applications
Mainsheet
Halyard
Vang
Spinnaker control lines on off-the-beach catamarans, one design classes and sports boats up to 8m 926 ft)
Materials
Acetal ball bearings
UV stabilized Acetal sheave
Grade 316 stainless steel load strap and head fitting
