Schaefer 3 Series Triple Sheave Over the Top Block

Item #

300-42

Usually ships within 1-3 days

Product Description

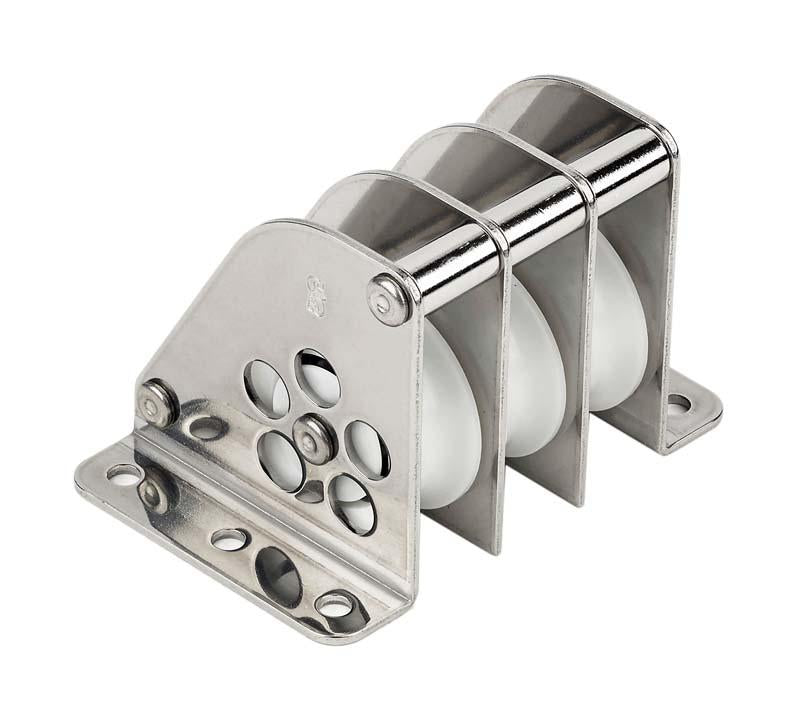

Schaefer 3 Series Triple Sheave Over the Top Block

3 Series Triple Over the Top Block. Stainless Steel cage and base provide a solid platform for clean leads. Delrin(tm) ball bearing sheaves ensure low-friction and high safe working loads.

Specifications

  • Sheave Dia.: 1 7/16 in. (36 mm)

  • Max Line Dia.: 7/16 in. (11 mm)

  • Length: 2 11/32 in. (60 mm)

  • Width: 3 3/8 in. (86 mm)

  • Overall Height: 2 11/32 in. (60 mm)

  • Sheave Height: 1 13/32 in. (36 mm)

  • C/C: 1 25/32 in. (45 mm)

  • Fasteners: (6) #10 (5 mm) RH

  • Safe Working Load: 650 lbs. (295 kg.)

  • Weight: 10 oz. (328 g)
