Schaefer 5 Series Triple Ball Bearing Sheave Over the Top Block

Item #

506-42

Usually ships within 1-3 days

Product Description

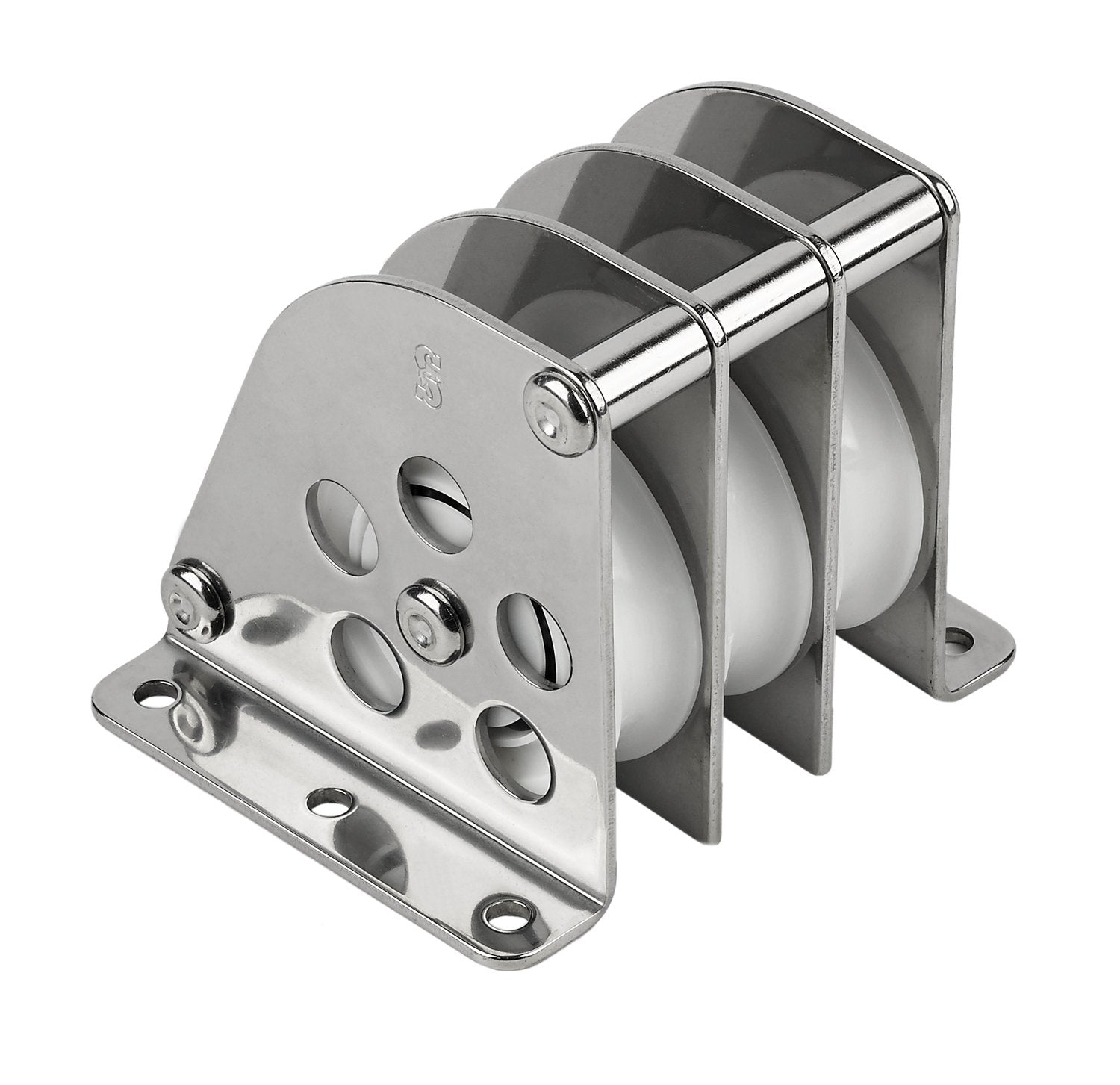

Schaefer 5 Series Triple Ball Bearing Sheave Over the Top Block

5 Series Triple Over the Top Block. Stainless Steel cage and base provide a solid platform for clean leads. Delrin(tm) ball bearing sheaves ensure low-friction and high safe working loads.

Specifications:

  • Sheave Dia.: 2 in. (51 mm)

  • Max Line Dia.: 7/16 in. (11 mm)

  • Length: 2 7/8 in. (73 mm)

  • Width: 3 17/32 in. (90 mm)

  • Overall Height: 2 15/16 in. (74 mm)

  • Sheave Height: 2 in. (51 mm)

  • C/C: 2 5/16 in. (59 mm)

  • Fasteners: (6) #10 (5 mm) RH

  • Safe Working Load: 1000 lbs (450 kg.)

  • Weight: 1 lb. 1 oz. (482 g)
