Product Description

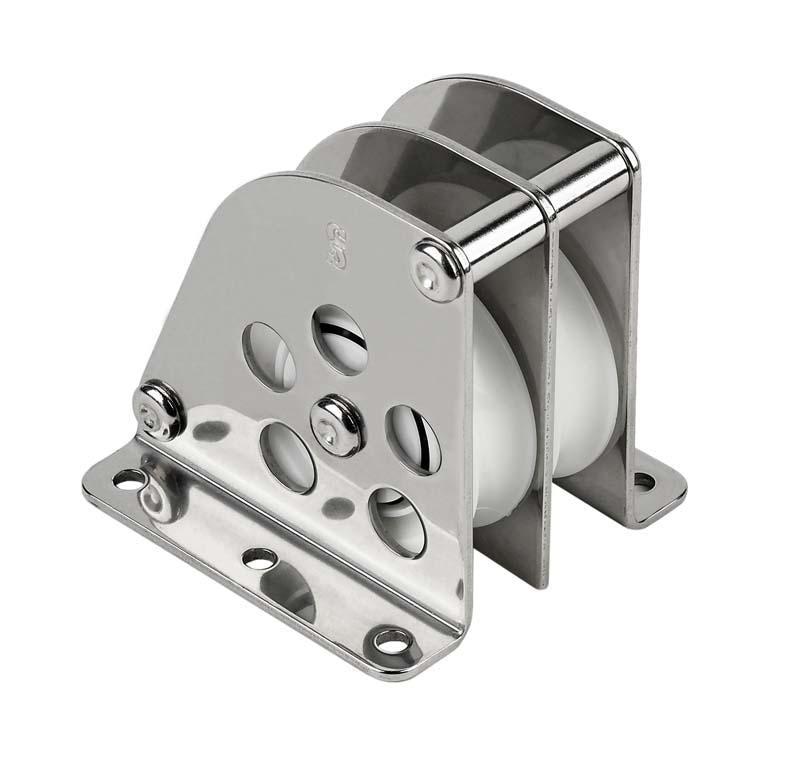

Schaefer 5 Series Double Sheave Over the Top Block
5 Series Double Over the Top Block. Stainless Steel cage and base provide a solid platform for clean leads. Delrin(tm) ball bearing sheaves ensure low-friction and high safe working loads.
Specifications
Sheave Dia.: 2 in. (51 mm)
Max Line Dia.: 7/16 in. (11 mm)
Length: 2 7/8 in. (73 mm)
Width: 2 3/4 in. (76 mm)
Overall Height: 2 15/16 in. (74 mm)
Sheave Height: 2 in. (51 mm)
C/C: 2 5/16 in. (59 mm)
Fasteners: (6) #10 (5 mm) RH
Safe Working Load: 1000 lbs. (40 kg.)
Weight: 12.6 oz. (357 g)
