Product Description

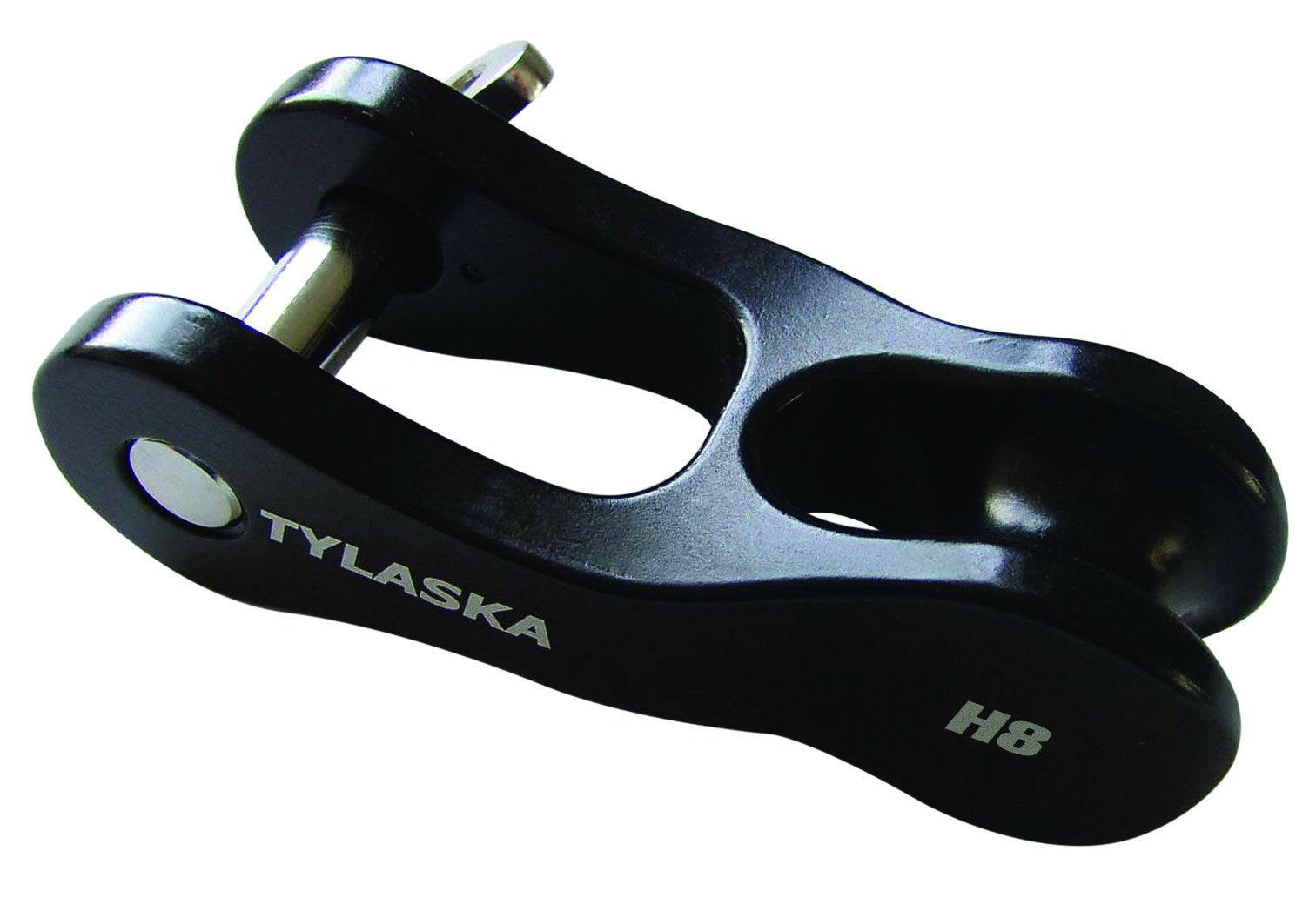

Tylaska 3.15" H8 Aluminum Halyard Shackle
Tylaska’s halyard shackles are machined from aerospace grade aluminum plate and hard-coat anodized to military specifications for superior strength and durability. A captive 17-4PH stainless steel pin makes for trouble-free operation. The machined thimble surface is suitable for permanently spliced fixed halyards.
Specifications
Shackle Type - H8
Safe Working Load(lb.) - 4,000 (1,810kg)
Breaking Strength(lb.) - 8,000 (3,630kg)
Line Size(in.) - 3/8"-1/2" (10mm-12mm)
Weight(oz.) - 3.1 (87g)

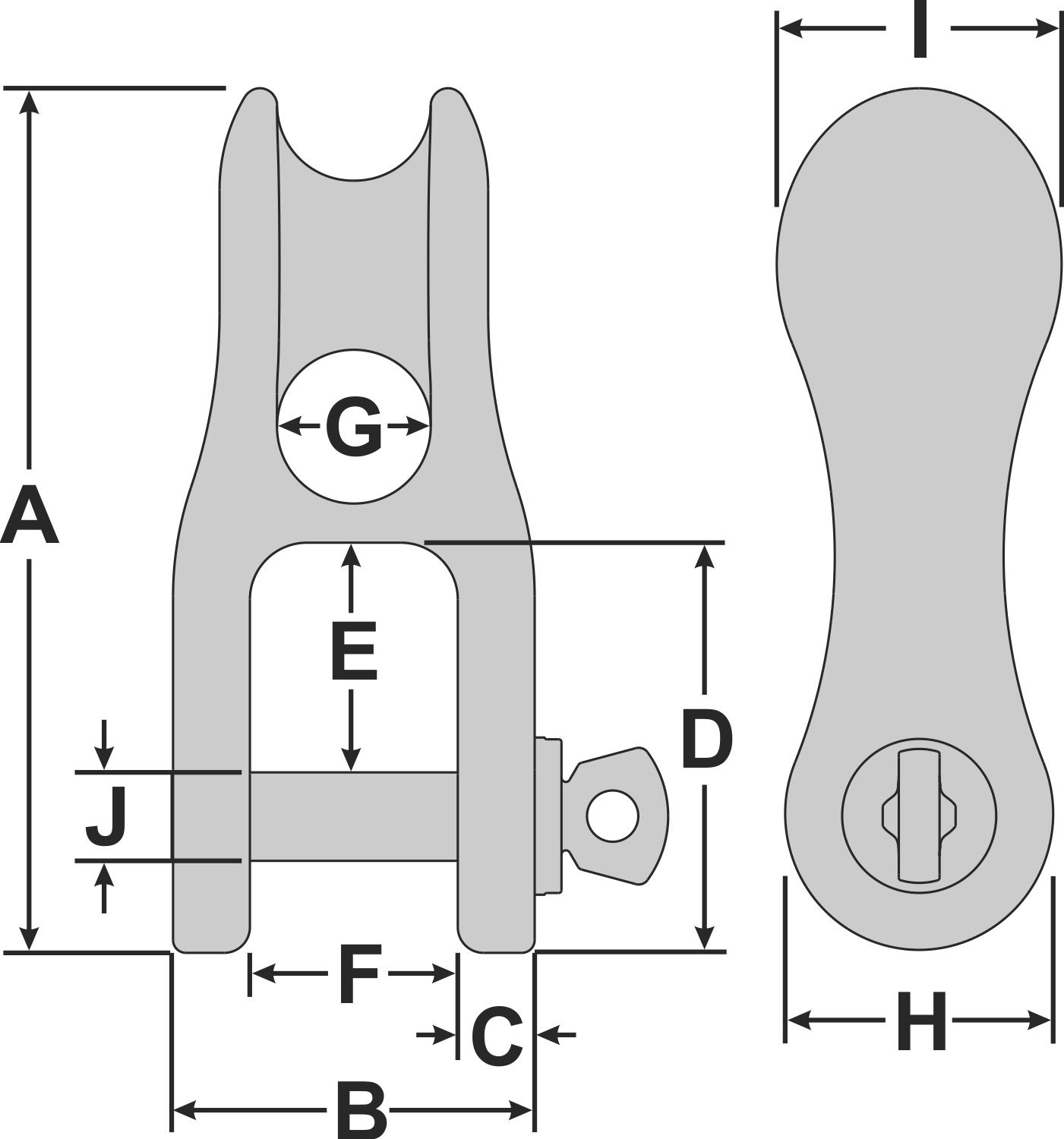

Dimensions
A(in.) - 3.16" (80.2mm)
B(in.) - 1.32" (33.5mm)
C(in.) - 0.28" (7.1mm)
D(in.) - 1.50" (38.2mm)
E(in.) - 0.83" (21.2mm)
F(in.) - 0.76" (19.3mm)
G(in.) - 0.56" (14.3mm)
H(in.) - 1.00" (25.4mm)
I(in.) - 1.07" (27.1mm)
J(in.) - 0.31" (8.1mm)
