Product Description

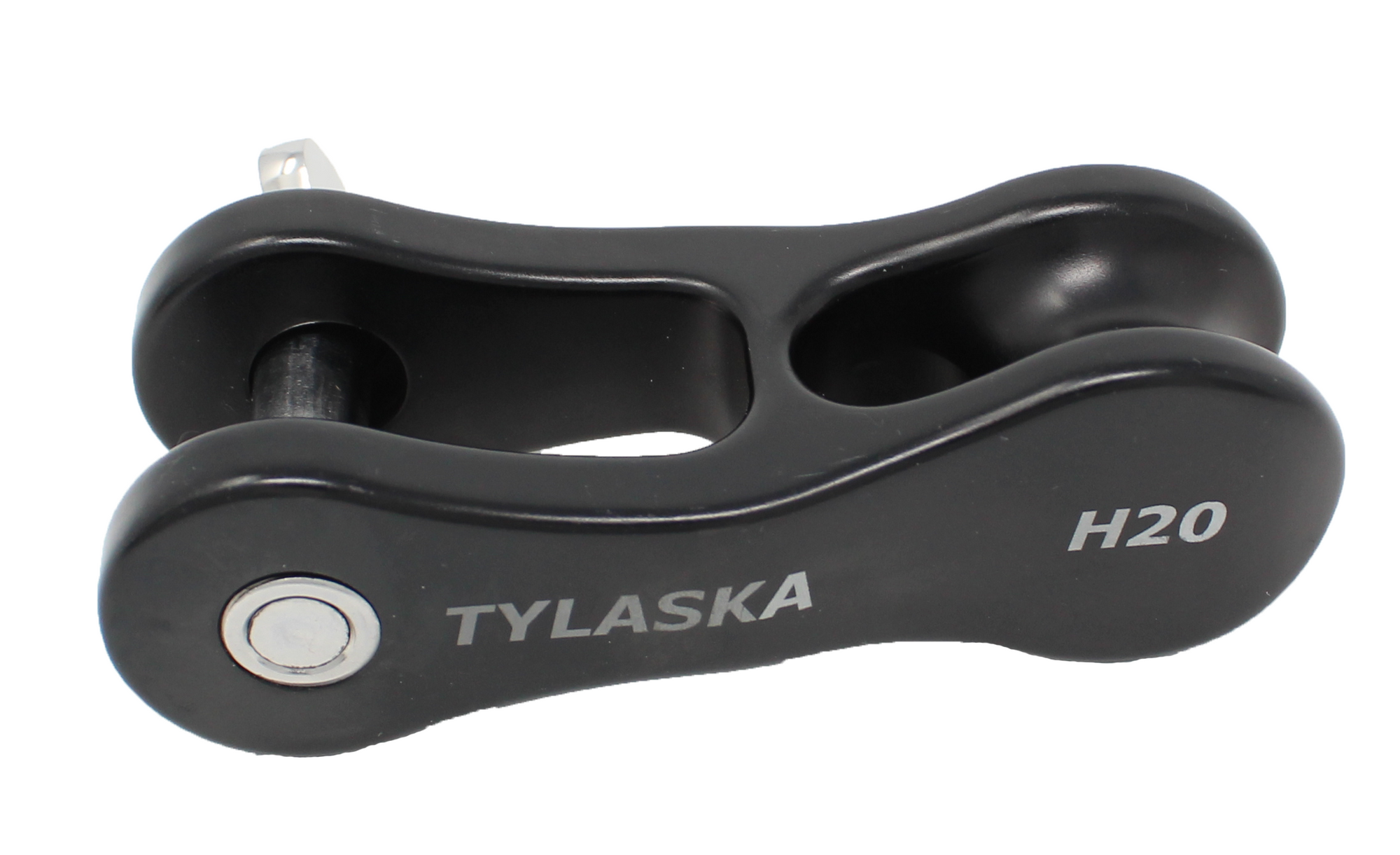

Tylaska 4.84" H20 Aluminum Halyard Shackle
Tylaska’s halyard shackles are machined from aerospace grade aluminum plate and hard-coat anodized to military specifications for superior strength and durability. A captive 17-4PH stainless steel pin makes for trouble-free operation. The machined thimble surface is suitable for permanently spliced fixed halyards.
Specifications
Shackle Type - H20
Safe Working Load(lb.) - 10,000 (4,540kg)
Breaking Strength(lb.) - 20,000 (9,070kg)
Line Size(in.) - 1/2"-5/8" (12mm-16mm)
Weight(oz.) - 10.5 (296g)

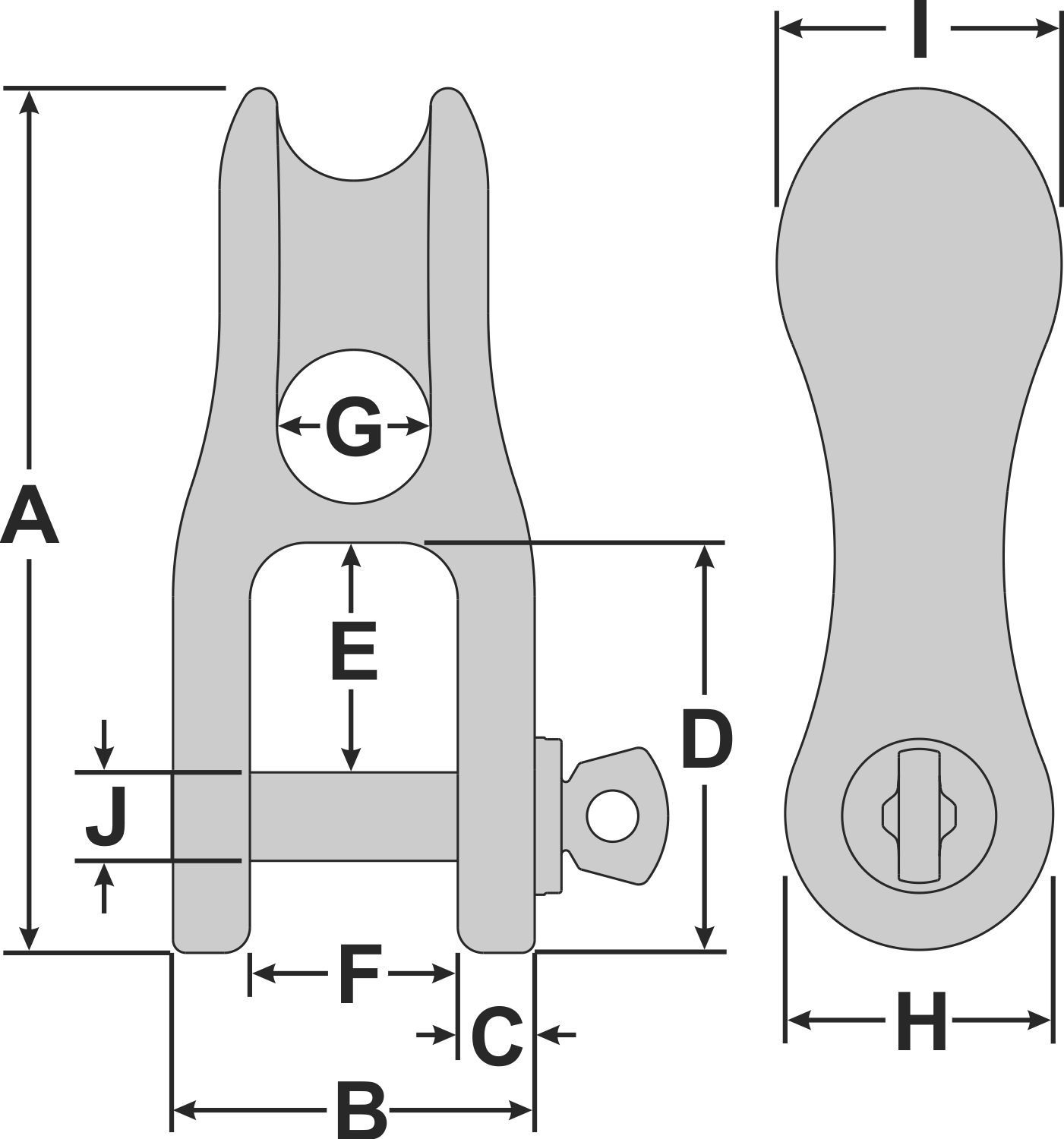

Dimensions
A(in.) - 4.84" (122.9mm)
B(in.) - 1.84" (46.7mm)
C(in.) - 0.42" (10.7mm)
D(in.) - 2.50" (63.5mm)
E(in.) - 1.50" (38.1mm)
F(in.) - 1.00" (25.4mm)
G(in.) - 0.75" (19mm)
H(in.) - 1.50" (38.1mm)
I(in.) - 1.58" (40.1mm)
J(in.) - 0.50" (12.7mm)
