Product Description

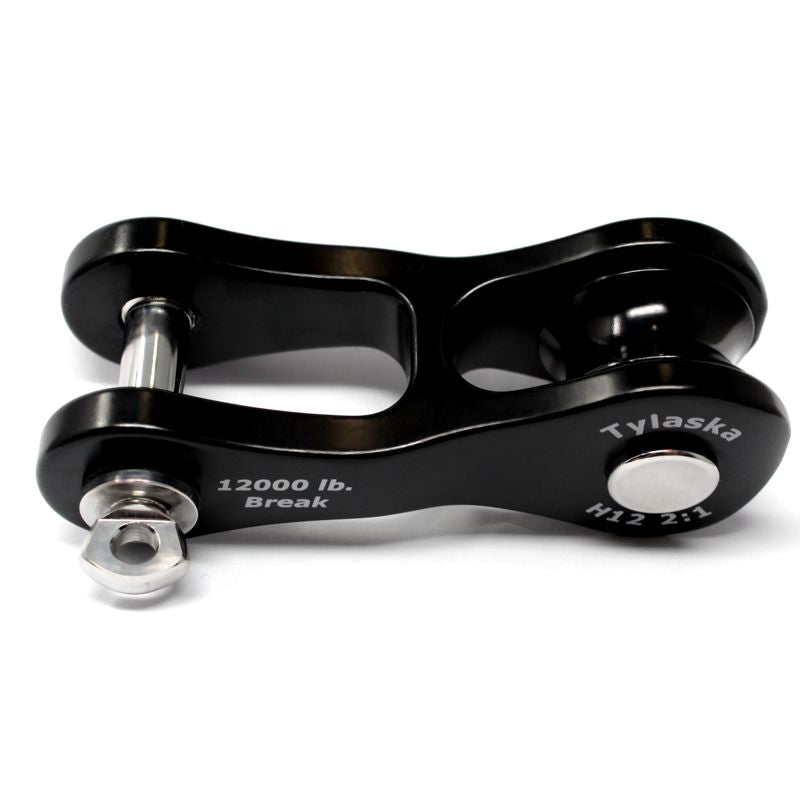

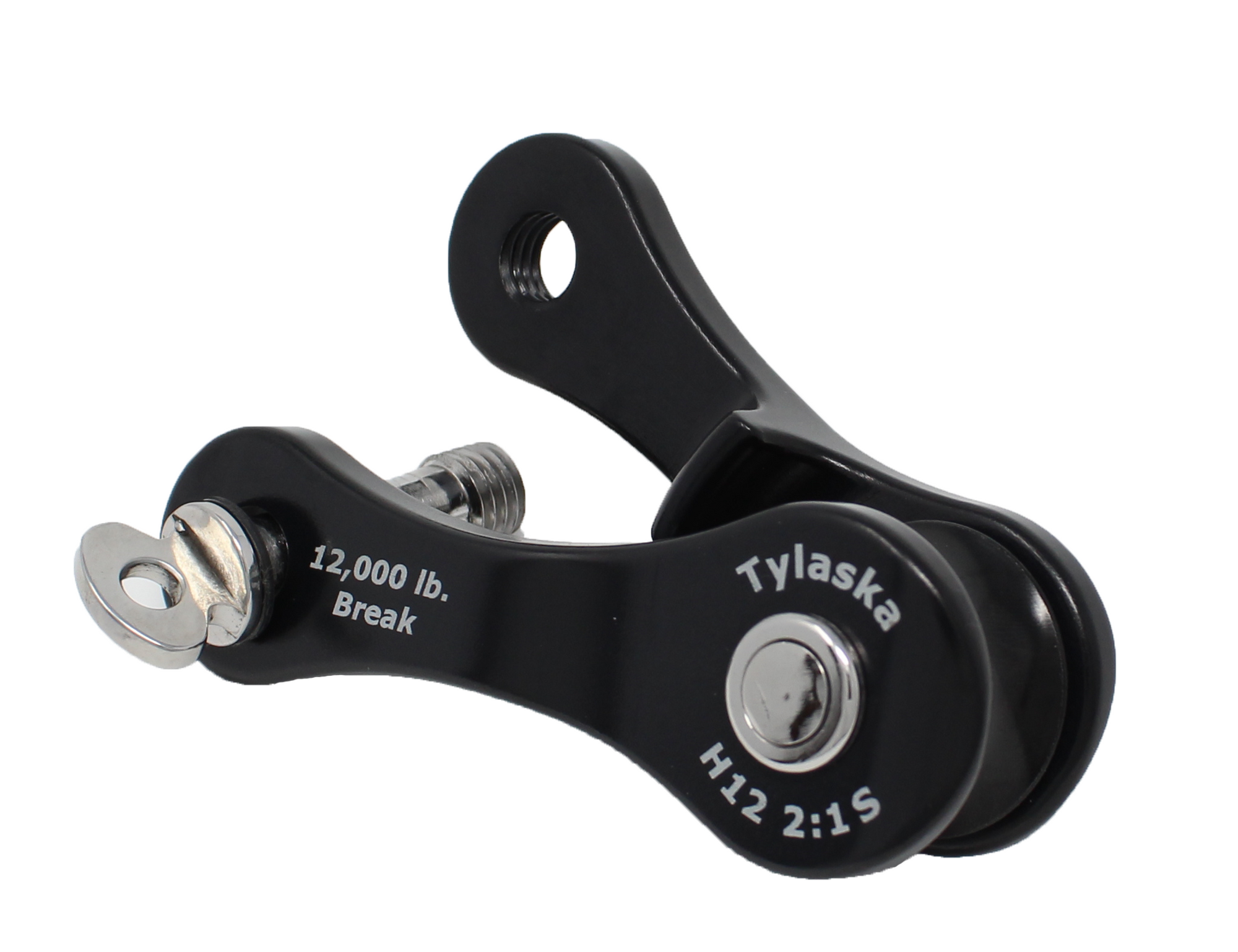

Tylaska 3.74" H12 Aluminum Halyard Split Shackle
Specifications
Shackle Type - H12
Safe Working Load(lb.) - 6,000 (2,720kg)
Breaking Strength(lb.) - 12,000 (5,440kg)
Line Size(in.) - 7/16"-5/8" (11mm-16mm)
Weight(oz.) - 6.3 (180g)

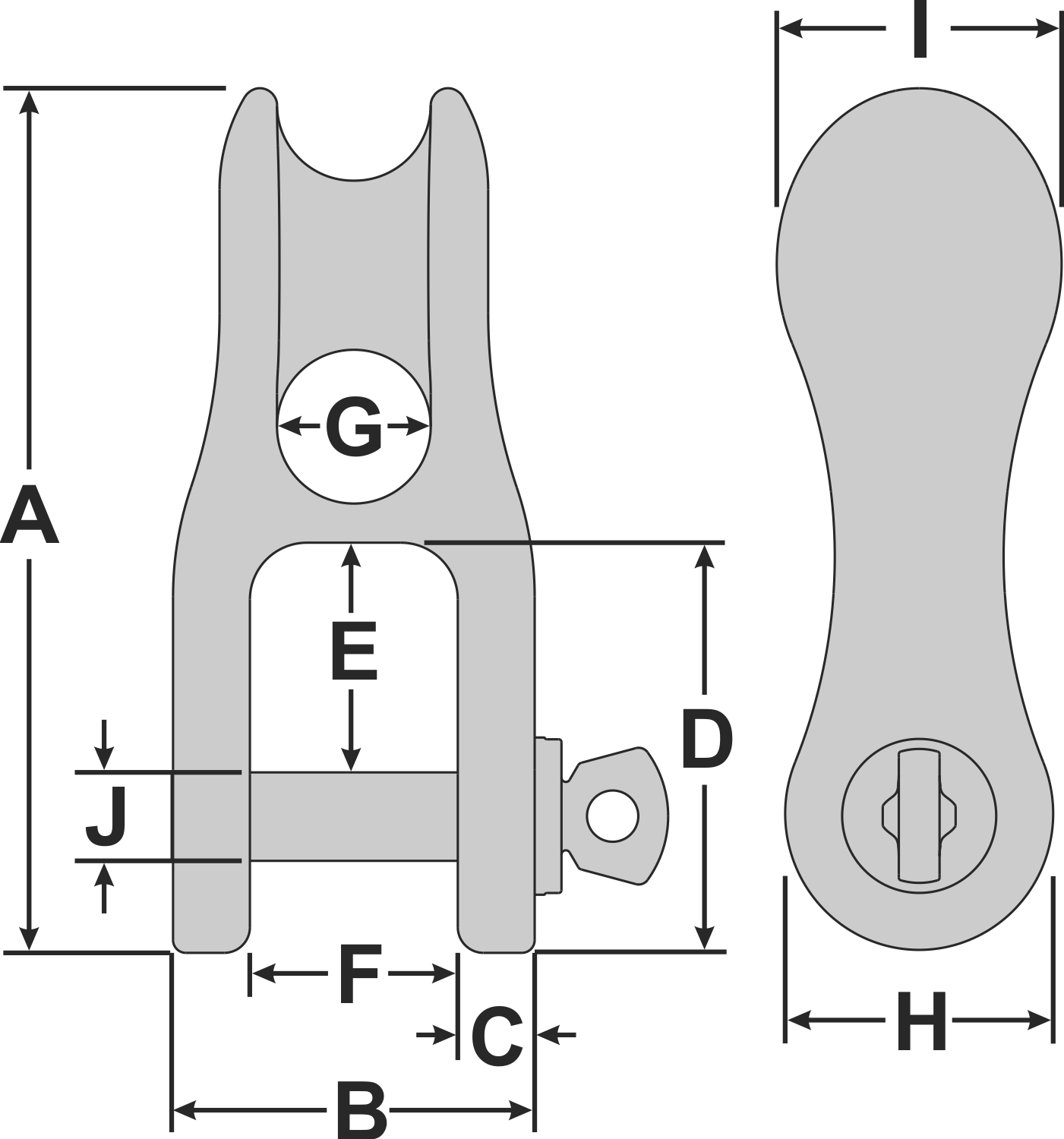

Dimensions
A(in.) - 4.08" (103.6mm)
B(in.) - 1.50" (38.1mm)
C(in.) - 0.31" (7.9mm)
D(in.) - 2.00" (50.8mm)
E(in.) - 1.25" (31.7mm)
F(in.) - 0.88" (22.4mm)
G(in.) - 0.66" (16.8mm)
H(in.) - 1.12" (28.4mm)
I(in.) - 1.44" (36.5mm)
J(in.) - 0.38" (9.7mm)
