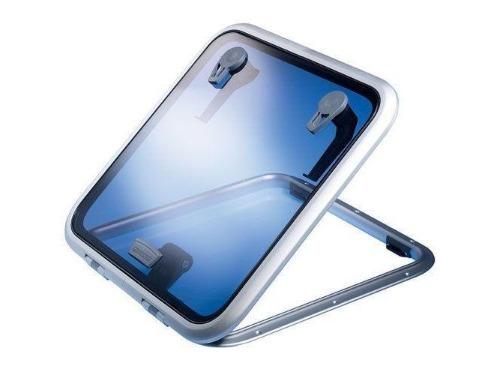

Lewmar Size 03 Low Profile Self Supporting Hatch
All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).
Mounting Instructions:
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specifications
Support System - Self Supporting
Lower Frame (in) - 9/16
Acrylic Color - Smoke Grey
Hatch Weight (lb) - 3.5
Acrylic Window Thickness (in) - 5/16
Dimensions
Length X (in) - 9 11/16
Width Y (in) - 11 7/8
Height Z (in) - 1
Radii R (in) - 2 7/8
Cut-Out Length X1 (in) - 6 15/16
Cut-Out Width Y1 (in) - 9 1/8
Cut-Out Radii R1 (in) - 1 11/16
