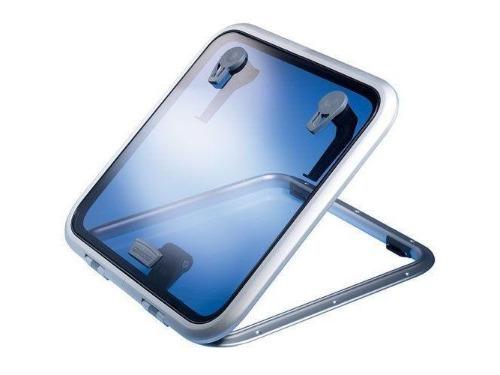

Lewmar Size 30 Low Profile Self Supporting Hatch

Item #

39930030

Usually ships within 1-3 days

Product Description

Lewmar Size 30 Low Profile Self Supporting Hatch

All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications

  • Support System - Self Supporting

  • Lower Frame (in) - 9/16

  • Acrylic Color - Smoke Grey

  • Hatch Weight (lb) - 8.6

  • Acrylic Window Thickness (in) - 5/16

    Dimensions

  • Length X (in) - 15 5/8

  • Width Y (in) - 20 3/4

  • Height Z (in) - 1

  • Radii R (in) - 2 7/8

  • Cut-Out Length X1 (in) - 12 7/8

  • Cut-Out Width Y1 (in) - 18

  • Cut-Out Radii R1 (in) - 1 11/16
