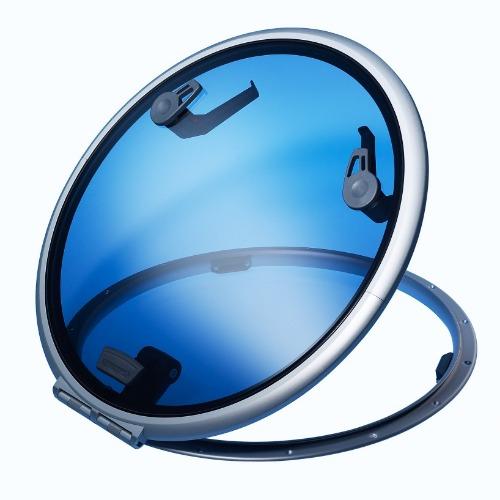

Lewmar Size 22 Low Profile Self Supporting Round Hatch

Item #

39922030

Usually ships within 1-3 days

Product Description

Lewmar Size 22 Low Profile Self Supporting Round Hatch

All sizes suitable for CE Area 2 (Deck, Coach roof, Cockpit and Transom).

Mounting Instructions:

Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use (M6 / 1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Specifications

  • Support System - Self Supporting

  • Lower Frame (in) - 9/16

  • Acrylic Color - Smoke Grey

  • Hatch Weight (lb) - 12.8

  • Acrylic Window Thickness (in) - 3/8

    Dimensions

  • Diameter Ø (in) - 23 1/8

  • Height Z (in) - 1

  • Hinge Length HX (in) - 23 1/4

  • Hinge Width HY (in) - 6 13/16

  • Cut-Out Diameter Ø1 (in) - 20 3/8
