Product Description

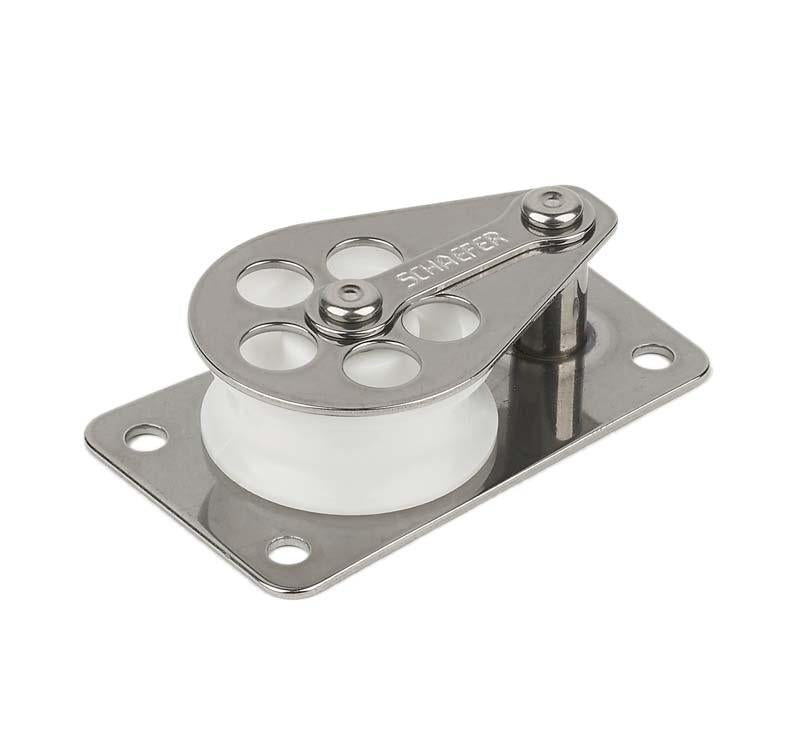

Schaefer Series 3 Flat Base SS Cheek Block
3 Series Cheek Block with Stainless Steel cheek and base. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a large surface area.
Specifications:
Sheave Dia.: 1 7/16 in. (37 mm)
Max Line: 7/16 in. (11 mm)
Length: 2 7/8 in. (73 mm)
Width: 1 3/4 in. (44 mm)
Height: 3/4 in. (19 mm)
Fasteners: (4) #10 RH (5 mm)
C/C: 2 3/8 in. (60 mm)
SWL: 1000 lbs. (450 kg)
Weight Stain.: 2.6 oz. (74 g)
