Product Description

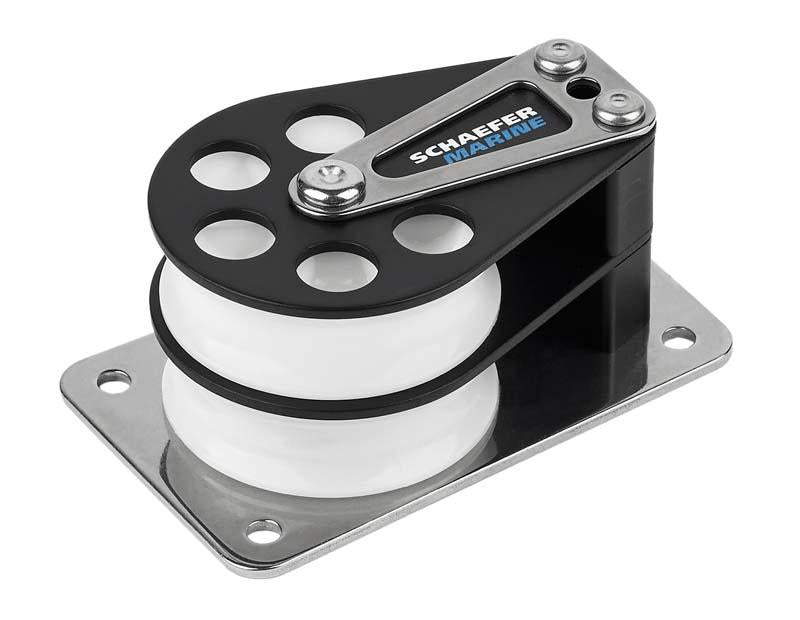

Schaefer Double Cheek Block with Delrin Sheaves
Double Cheek Block with Delrin Sheaves. Lower Sheave Safe Working Load 1750 lbs, Upper Sheave 350 lbs. Works with #55-60 to fit curved spars.
Specifications:
Sheave Dia.: 2 in. (51 mm)
Max Line: 7/16 in. (11 mm)
Length: 3 5/8 in. (92 mm)
Width: 2 7/32 in. (57 mm)
SWL: 1750 lbs. (795 kg)
TOP SHEAVE SWL: 350 lbs. (159 kg)
Fasteners: (4) #10 RH (5 MM)
C/C: 3 in. (76 mm)
Weight Alum.: 7.9 oz. (224 g)
