Product Description

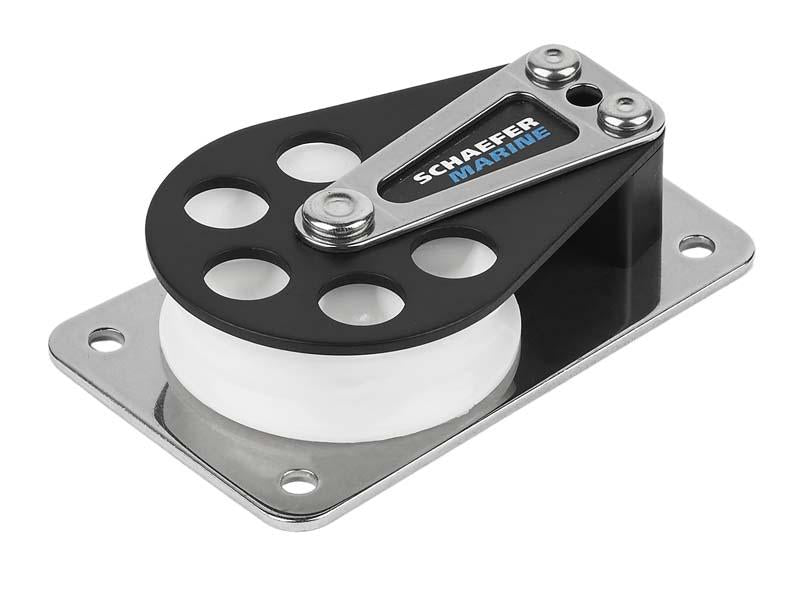

Schaefer Aluminum Cheek Block with 2" Delrin Sheave
5 Series Cheek Block with anodized Aluminum cheek. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
Sheave Dia.: 2 in. (51 mm)
Max Line: 7/16 in. (11 m)
Length: 3 5/8 in. (92 mm)
Width: 2 7/32 in. (57 mm)
Height: 7/8 in. (22 mm)
Fasteners: (4) #10 RH (5 mm)
C/C: 3 in. (76 mm)
SWL: 1750 lbs. (795 kg)
Max Line: 7/16 in. (11 mm)
Weight Alum.: 5.9 oz. (148 g)
