Product Description

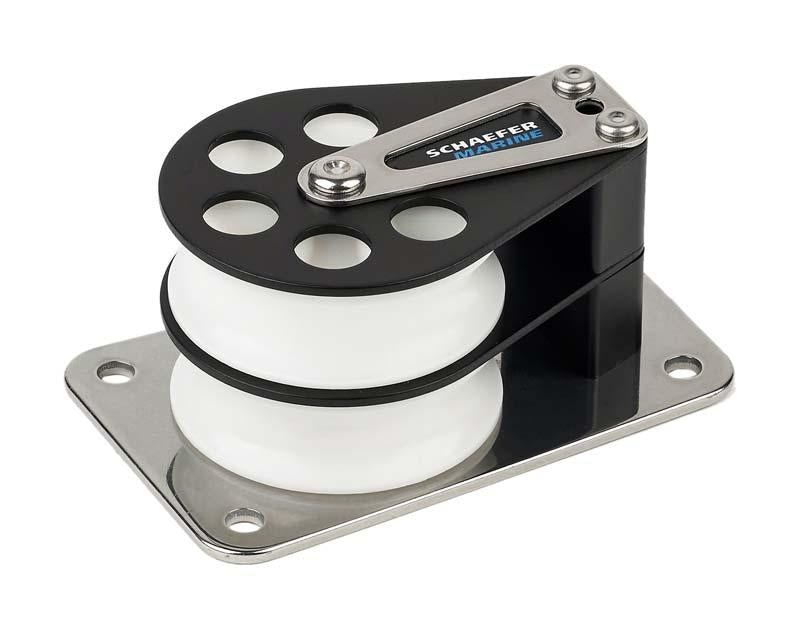

Schaefer Flat Base 2 3/8" Double Sheave Aluminum Cheek
7 Series Double Cheek Block with anodized Aluminum cheek. Delrin(tm) sheaves ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
Sheave Dia.: 2 3/8 in. (60 mm)
Max Line: 1/2 in. (13 m)
Length: 4 3/8 in.(111 mm)
Width: 2 3/4 in. (70 mm)
Height: 1 29/32 in. (48 mm)
Fasteners: (4) 1/4 in. RH (6 mm)
C/C: 2 5/8 in. (92 mm)
SWL: 2250 lbs. (1020 kg)
Top Sheave SWL: 500 lbs. (227 kg)
Weight Alum.: 13 oz. (368 g)
